Polytetrafluoroethylene
One braid of stainless AISI 304 wire
N/A
Aggressive chemicals transfer systems - Compressed air and gases - High or low temperature fluid or gas transfer

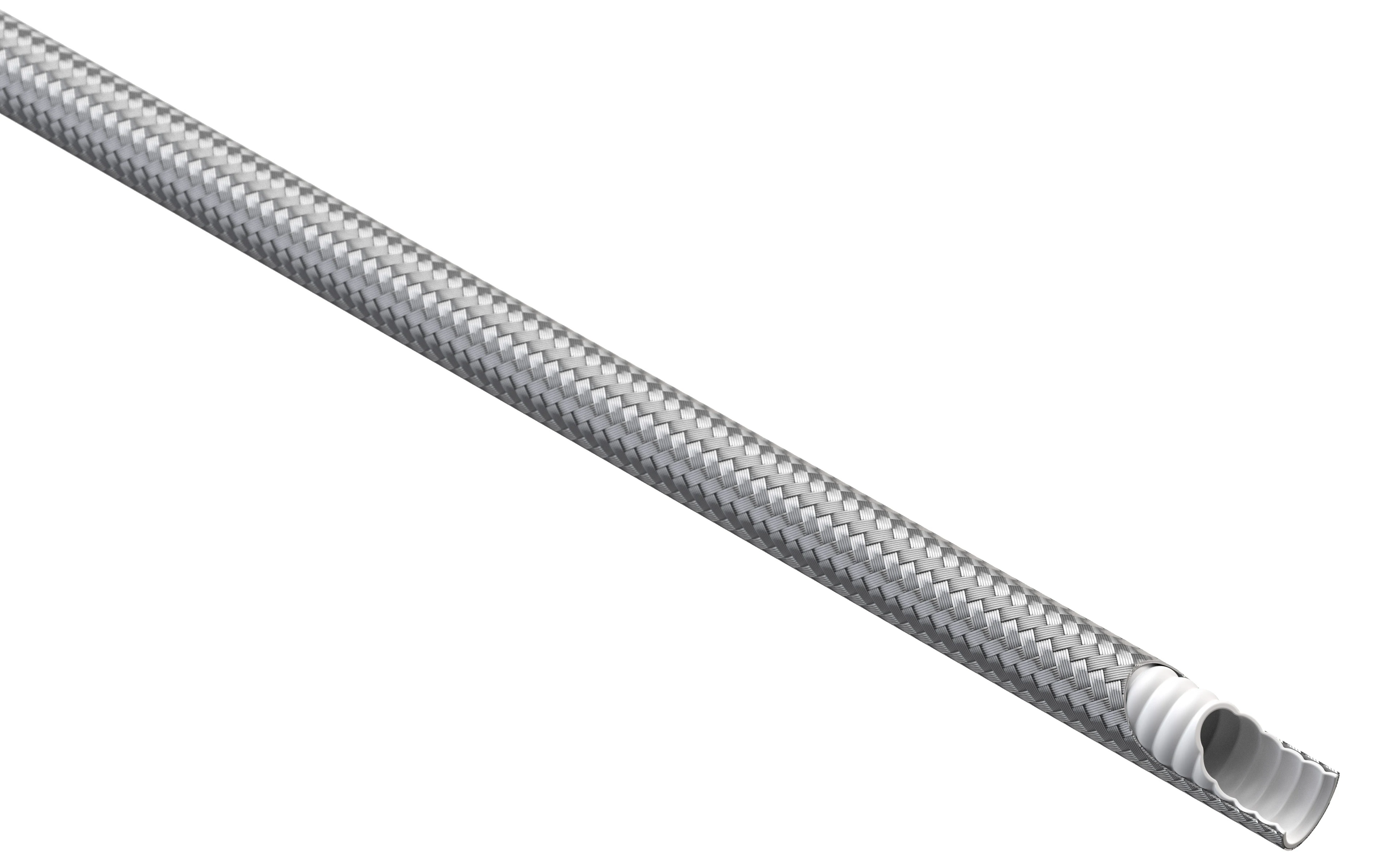

Pure PTFE tube material: lightweight resistant to almost all chemicals gases and solvents. Stainless steel braid / cover to support medium pressure requirements. Hose comes in random length coils
Lightweight convoluted hose for standard industrial use especially for high or low temperature and aggressive chemical applications: including some gases (there will be a level of gas permeation which should be taken into account). Care should be taken to ensure proper fitting and ferrule compatibility - we recommend to contact our sales office for fittings selection. Hose not suitable for continuous hydraulic impulse applications. Above 130 °C ( 266 °F) there will be a reduction in maximum working pressure: reduce maximum working pressure by 1% for each 2 °C (3.6 °F) above 130 °C ( 266 °F). Hose suitability must be checked when discharge of electrical static build up is required.
-60 °C to +260 °C (-76 °F to +500 °F)
