Popular couplings British Standard Pipe (BSP) threads, also known as Whitworth threads. The BSPP (parallel) male will mate with a BSPP (parallel) female or a female port. The BSPP male has straight threads and a 30° seat. The BSPP female has straight threads and a 30° seat. The female swivel BSPP has a tapered nose which seals on the cone seat of the male. The BSPP (parallel) connector is similar to, but not interchangeable with, the NPSM connector. The thread pitch is different in most sizes, and the thread angle is 55° instead of the 60° angle found on NPSM threads.

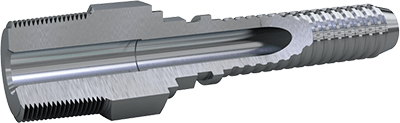

This is a dryseal thread, the National pipe tapered thread for fuels. This is used for both male and female ends. This connection is still widely used in fluid power systems, even through itiIs not recommended by the National Fluid Power Association (N.F.P.A.) for use in hydraulic applications. The NPTF male will mate with the NPTF, NPSF or NPSM female. The NPTF male has tapered threads and a 30? inverted seat. The NPTF female has tapered threads and no seat. The seal takes piace by deformation of the threads. The NPSM female has straight threads and a 30° inverted seat. The seal takes piace on the 30° seat. The NPTF connector is similar to, but not interchangeable with, the BSPT connector. The thread pitch is different in most sizes. Also, the thread angle is 60° instead of the 55° angle found on BSPT threads.

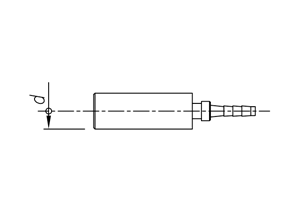

A metric standpipe is comprised of three components attached to a male f tting. The components are: a Standpipe, Bite Sleeve and Metric Nut. The nut is placed over the Standpipe, followed by the Bite Sleeve. For DIN light assemblies, a DIN light metric nut is used. For DIN heavy assemblies, a DIN heavy metric nut is used. The Bite Sleeve and Standpipe are selected on the basis of tube O.D.

Popular couplings British Standard Pipe (BSP) threads, also known as Whitworth threads. The BSPP (parallel) male will mate with a BSPP (parallel) female or a female port. The BSPP male has straight threads and a 30

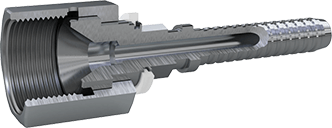

The Society of Automotive Engineers (SAE) specifies a 37? angle flare or seat be used with high pressure hydraulic tubing. These are commonly called JIC couplings. The JIC 37? flare male will mate with a JIC female only. The JIC male has straight threads and a 37? flare seat. The JIC female has straight threads and a 37? flare seat. The seal is made on the 37? flare seat by establishing a line contact between the male flare and the female cone seat. The threads hold the connection mechanically.

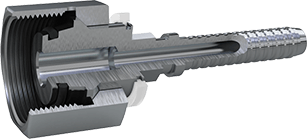

The DIN 24° cone male will mate with any of the three females listed: Female 24° cone with O-Ring, Female metric tube, Female Universal or 60° cone.The male has a 24° seat, straight metric threads, and a recessed counterbore with matches the tube O.D. used with it.The mating female may be a 24° cone with O-ring (DKO type), a metric tube fitting or a universal 24° or 60° cone.There is a light and heavy series DIN coupling. Proper identification is made by measu ring both the thread size and the tube O.D. (the heavy series has a smaller tube O.D. than the light, but has a thicker wall section).

A metric standpipe is comprised of three components attached to a male f tting. The components are: a Standpipe, Bite Sleeve and Metric Nut. The nut is placed over the Standpipe, followed by the Bite Sleeve. For DIN light assemblies, a DIN light metric nut is used. For DIN heavy assemblies, a DIN heavy metric nut is used. The Bite Sleeve and Standpipe are selected on the basis of tube O.D.

Different fittings for thermoplastic flexible hoses, standpipes, 90° elbow pipe or nut connection

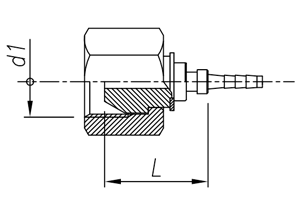

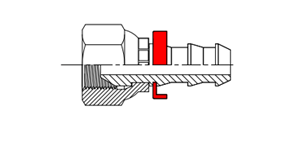

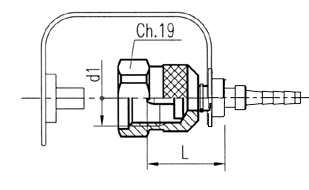

HB - Female BSPP | HP - Male BSPP

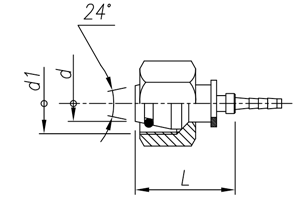

HD - Female DKOS

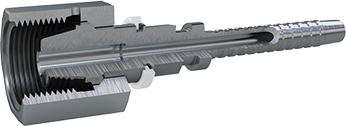

HC - Female METRIC 24° - 60

HE - Female JIC

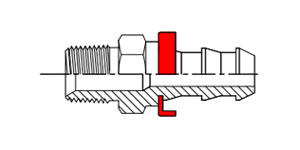

HI - Male NPT | HH - Female NPT | OI - Male NPT one piece

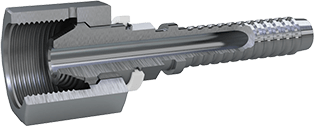

HF - Female TYPE-M

HL - Male MP | HM - Male HP | HN - Male HP METRIC | HG - Female HP

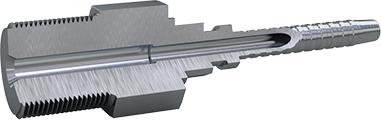

HJ - Male GAS | OJ - One-piece Male GAS

HK - Male METRIC

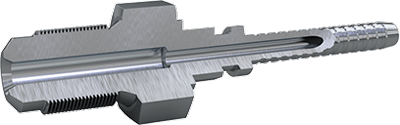

HQ - Male GAS100 External Cone

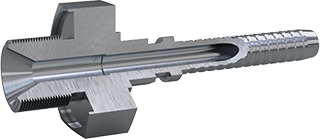

HR - Male USIT

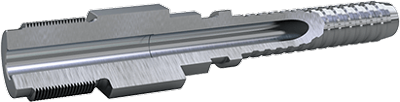

HS - Male FLAT SEAL | OS - Male FLAT SEAL ONE PIECE
